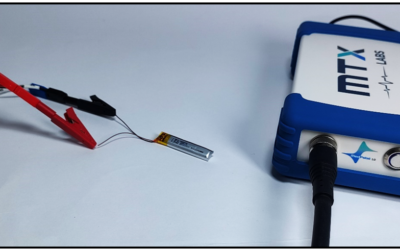

Batteries are a crucial part of modern energy storage technologies, powering anything from electric cars to portable electronics. As demand for efficient energy storage grows, advancements in battery chemistry and design are essential for better performance and...
Sale!
Handheld Potentiostat/Galvanostat, Electrochemical Analyzer (MedPstat 2.0)
Original price was: $2,199.00.$1,999.00Current price is: $1,999.00.
- Handheld Affordable & Potentiostat/Galvanostat
- Applied Potential Range: ±2.4 V
- Max Current Range: 100 mA
- Measured Potential Range (Gal): ±7.5 V
- USB Communication
- Software for PC Data acquisition & plotting
MedPstat 2.0 is a Handheld Affordable & Precision Potentiostat/Galvanostat, with a wide range of ±2.4 V, 100 mA. Optimum for electrochemistry learning & research applications. Comes with high-quality dummy cells for learning & calibration applications, Software for PC, Data acquisition & plotting.
Detailed Specifications:
- Electrochemical Methods: CV, LSV, ChronoAmp, OCP, DPV, SWV, ChronoPot, Charge-Discharge
Channels Per Unit: 1
Applied potential range: ±2.4 V
Applied Potential Accuracy: 0.1% of the setpoint, 1mV Max
Applied Potential Resolution: 76 µV
Measured Potential Accuracy: 0.1% of the setpoint, 1mV Max
Measured Potential Resolution: 156 µV
Applied Current Resolution (Gal) 1.5 pA
Measured Potential Range (Gal) ±7.5 V
Compliance Voltage: ±8 V
Maximum Current: 100 mA
Current ranges: 7 Ranges
Measured Current Accuracy: 0.1% of the range, 1nA max
Measured Current Resolution: 0.00015% of range, 1.5 pA
Input Impedance: < 10 TΩ
Input Bias Current: 1pA Max
Computer Interface: USB
Channel Cable Length: 0.8 meter
power supply: 12V DC
Power Supply Requirements: 100V - 240V AC
Weight: 285 grams
Physical Dimensions: 181mm * 91.5mm * 42mm
Operating temperature range: 0 to 50°C
Communication: USB
Bandwidth: up to 4 MHz
Max. data acquisition rate: 1 KHz
ADC/DAC Resolution: 16 bit
Slew Rate (No Load): 3.5 V/µS
Maximum ADC Sampling Speed: 5,00,000 samples/sec
Additional information
| Weight | 1.4 kg |
|---|---|
| Dimensions | 340 × 300 × 90 cm |
| Select Model | MedPstat 1.0 (Basic) 30mA, MedPstat 1.0 (Advance) 100mA, MedPstat 1.0 (EC Kit) with Cell Setup |
Software
MedPstat comes with lifetime free licensed version of MedEplot data acquisition & plotting software. It is compatible with any PC or laptop with windows OS.
MedEplot is specifically designed to
Simple User Interface
Light Weight Software
Live Data View
Save Data in CSV
Open / Overlay Plot
Windows / IOs
MedPstat 2.0 Kit Package
MedPstat 2.0
Most Versatile Potentiostat/Galvanostat (1 piece)
Electrode Cable (1 Piece)
Mini Dummy Cell (1 piece)
Power Adaptor (1 piece)
USB C Cable (1 piece)
Pen Drive with Software (1 piece)
Warranty: 1 Year
Offer Price: $1999
Videos
Application Notes

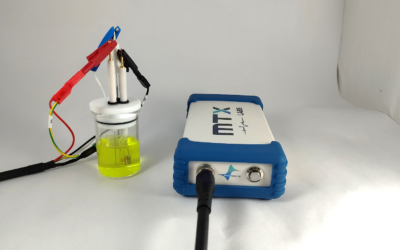

Application Notes on Electrochemical Water-Splitting in Alkaline medium using MedPstat 2.O
This application note offers a detailed overview of how the Potentiostat device is utilized in electrochemical water-splitting studies. This note aims to help researchers understand and effectively utilize the MedPstat 2.O device for their water-splitting experiments....

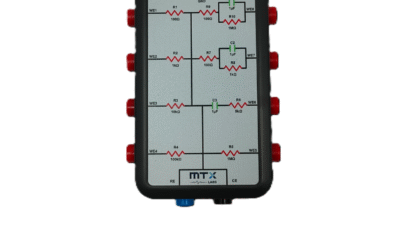

Note to Calibrate a MedPstat with MTX Labs mini Dummy Cell
This application note provides comprehensive guidance on using the mini Dummy Cell for MedPstat calibration. The mini Dummy Cell includes a 1K ohm resistor, essential for checking the current ranges during calibration. The primary focus of this document is to check...
Application Note on testing Screen Printed Electrodes (SPE) with Potentiostat MedPstat 1.0
This application note provides detailed instructions for using the MedPstat device in Ferro/Ferri cyanide redox couple investigations, employing MTX Labs Screen-printed carbon electrodes. This Ferro/Ferri cyanide redox system serves as an excellent model for...
Note to Calibrate a Potentiostat with MTX Labs Dummy Cell
Welcome to this comprehensive application note, crafted to offer detailed guidance on utilizing the Dummy cell for potentiostat calibration, specifically focusing on the Linear Sweep Voltammetry (LSV) technique. This document aims to equip you with the necessary...

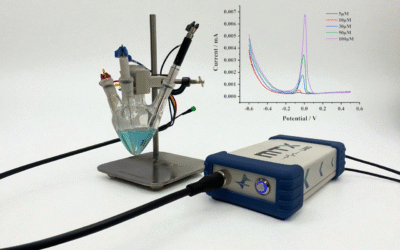

A Comprehensive Guide to conduct Cyclic Voltammetry with MedPstat 1.0 Instrument:
This application note provides a comprehensive manual for using the MedPstat device in Ferro/Ferri cyanide redox couple investigations. This Ferro/Ferri cyanide redox system is an excellent model for understanding cyclic voltammetry and electrochemical processes....
FAQs
Unable to connect MedPstat with Software?
First, check the USB-C type cable to ensure it is properly connected. Then, go to the PC settings and open the Control Panel. Navigate to "Ports (COM & LPT)" and check if the USB drive is recognized. If it is not showing up or is listed under "Other Devices" as...
What is the use of a dummy test cell provided with MedPstat?
The dummy test cell provided with MedPstat is primarily used for calibrating instruments and checking the current ranges. So, we provide a 1K resistor, which allows for easy testing of the instruments. If you encounter any issues or have doubts about the readings,...
What is the power requirement for MedPstat?
The MedPstat requires a power supply of 100V - 240V AC, 50/60 Hz. We provide a high-standard power supply compatible with American, Australian, UK, and European/Indian connections for universal use (You can choose any of them). The power cable is 1.5 meters long for...
